Freight Cars


Because most of the ACR's freight traffic was sintered iron ore, finished steel products and wood products, the freight car roster was not as varied as most railroads. Here are some photos of various ACR freight cars.

New photos are shown in cells with a pale yellow background.

Would you like prints of most any of these slides? Go to Desert-Rails.com for details!

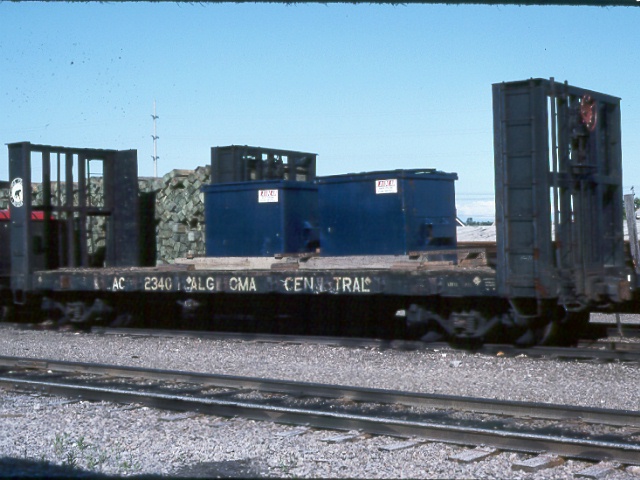

2340 - These racks, numbered in the 2300 series, were used for many years in pulpwood service. Once the 50 year rule applied, they were then used for work train service. They were 40 feet in length, and built around 1925. Very few if any are left today. This photo is at Steelton on June 23, 1982. More photos of these cars are in the "work equipment" section.
2405 - The ACR bought 25 of these 100 ton racks in 1978 - this one is at Steelton August 8, 1978.
2411 - Hawk Jct. June 19, 1987.
2425 - Steelton June 29, 1980.
2429 - Ex BCR car - Hawk Jct. June 19, 1987.
2436 - Steelton May 19, 1980. I think this car came from the British Columbia Railway in trade for some chip gons.
238147 - New log/pulpwood rack at Hawk Jct. August 6, 1996.
238173 - New log/pulpwood rack at Hawk Jct. Note the car number is missing the last 4 digits on the side! August 6, 1996.
1417 - End door detail after car was converted from chip to lumber service. Hawk Jct June 28, 1988.
1449 - Steelton September 16, 1979.
1489 - Here is a photo of a almost new chip car with the "ACIS" reporting marks (international service only) at Steelton Nov. 16, 1974. Some of these cars were sold/traded to the BCR for modern racks, and others converted into lumber service.
For the modeller's attention - here's a photo of one of the "At The Soo in '82" convention logos on one of the ACR's wood chip cars. Franz August 27, 1983.
1501.jpg (146600 bytes) 1501 - The second series of wood chip cars had just "AC" reporting marks. This car is on the Soo Line at Gladstone, Michigan on June 12, 1981 on its way to pulp mills in northern Wisconsin.
700 - A 52 foot gon at Steelton April 9, 1981 with remains from an earlier wreck.
837 - 52 foot gon at Steelton August 9, 1996.
1040 - One of the first order for the 61 foot gon, this one is at Hawk Jct. August 6, 1996. Note the differences in the end corners between this one and the car below...

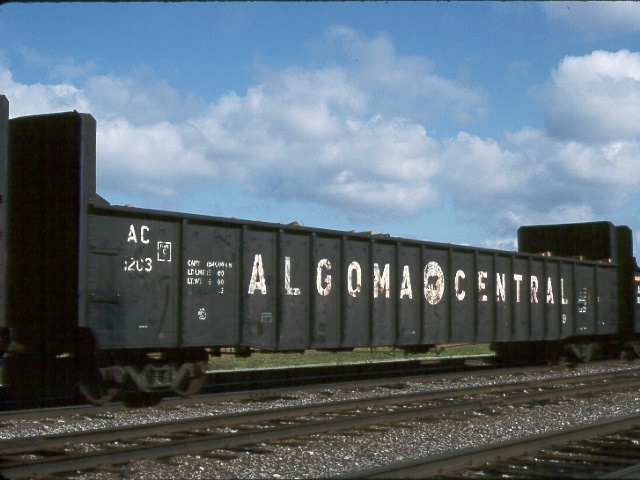

1203 - These 61 foot gons were used for both pulpwood and finished steel product service. They were built by National Steel Car in Hamilton, Ontario in the early sixties. At Hawk Jct. Aug. 6, 1996.
Unknown number - shown on its side in the ACR-CPR transfer yard at Steelton. With the bent frame this car is history. Good view of the end and underframe for modelers. Steelton July 13, 1979.
975 - Covered gons are used to carry coils of steel sheet that need to be kept from the weather. This one was a regular 52 foot gon with new covers added. Photo at Steelton June of 1979.

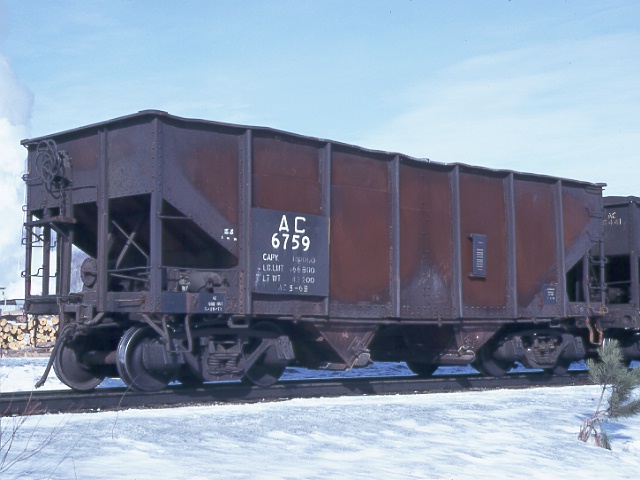

6759 - The ACR bought a large number of these 2 bay 50 and 70 ton hoppers in the late forties from various coal roads back east - supposedly for $400 each. They replaced the trucks and got 30 some years of service from them. On some you could still see old reporting marks and build dates, usually around 1915 to 1920. This car has lost its drawbar causing a wreck at Searchmont on March 11, 1974.
7008 - Steelton June 10, 1979 just prior to scrapping. There were just a few hoppers numbered in the 7000 series.
8001.jpg (114517 bytes) 8001 - The first new hoppers were these from National Steel Car in 1971, numbered 8001 thru 8100. These cars were not well liked account the chain driven door opening mechanism would freeze up in the winter time. There were supposed to be another 100 cars ordered, 8101 through 8200, but instead the following type was ordered. This car at Hawk Jct. July 2, 1988.
8250 - Here is the first car built of the 3 bay 100 ton Ortner hoppers - brand new at Steelton on Feb. 1, 1974. These cars worked out quite well, other than some problems with the first order having too stiff truck springs that caused a couple of derailments account rock and roll at certain speeds on certain stretches of track.
8366.jpg (128423 bytes) 8366 - Another Ortner hopper at Hawk Jct. on July 2, 1988.
8384.jpg (115246 bytes) 8384 - This car is also at Hawk Jct. on June 24, 1989. Most of these hoppers are still in service, and relettered WC and "20" added to the number, i.e. it is now WC 208384.
8626.jpg (133567 bytes) 8626 - The ACR bought about 25 of these type of hoppers from the Ontario Northland. This car is at Hawk Jct. on July 2, 1988.
